SKIN DUALTOUCH

Cost Effective Touch

Our entry product for indoor or outdoor wayfinding solutions or touch kiosks.

Available from 20” to 105”.

Cost Effective Touch Solution

SKIN DUALTOUCH is DISPLAX’s entry level cost-effective touch solution. It’s aimed mostly for touch kiosks or wayfinding solutions either for indoor or outdoor application, as this is a very robust product, ready for harsh environments.

Custom size from 20'' to 105''

Finger Touches

Up to 15mm Glass Thickness

Flexible

Not Affected by Day Light

Ready for Harsh Environments

Cost Effective Touch Solution

SKIN DUALTOUCH is DISPLAX’s entry level cost-effective touch solution. It’s aimed mostly for touch kiosks or wayfinding solutions either for indoor or outdoor application, as this is a very robust product, ready for harsh environments.

Custom size from 20'' to 105''

Finger Touches

Up to 15mm Glass Thickness

Flexible

Not Affected by Day Light

Ready for Harsh Environments

Smaller Sizes and Simple Applications

Understanding the importance of user-friendly interfaces in simple applications, SKIN DUALTOUCH is crafted specifically for simple applications like wayfinding systems and information kiosks, ensuring effortless interaction and seamless navigation for your audience.

SKIN DUALTOUCH is built with durability in mind, ensuring reliable performance even in high-traffic settings.

Smaller Sizes and Simple Applications

Understanding the importance of user-friendly interfaces in simple applications, SKIN DUALTOUCH is crafted specifically for simple applications like wayfinding systems and information kiosks, ensuring effortless interaction and seamless navigation for your audience.

SKIN DUALTOUCH is built with durability in mind, ensuring reliable performance even in high-traffic settings.

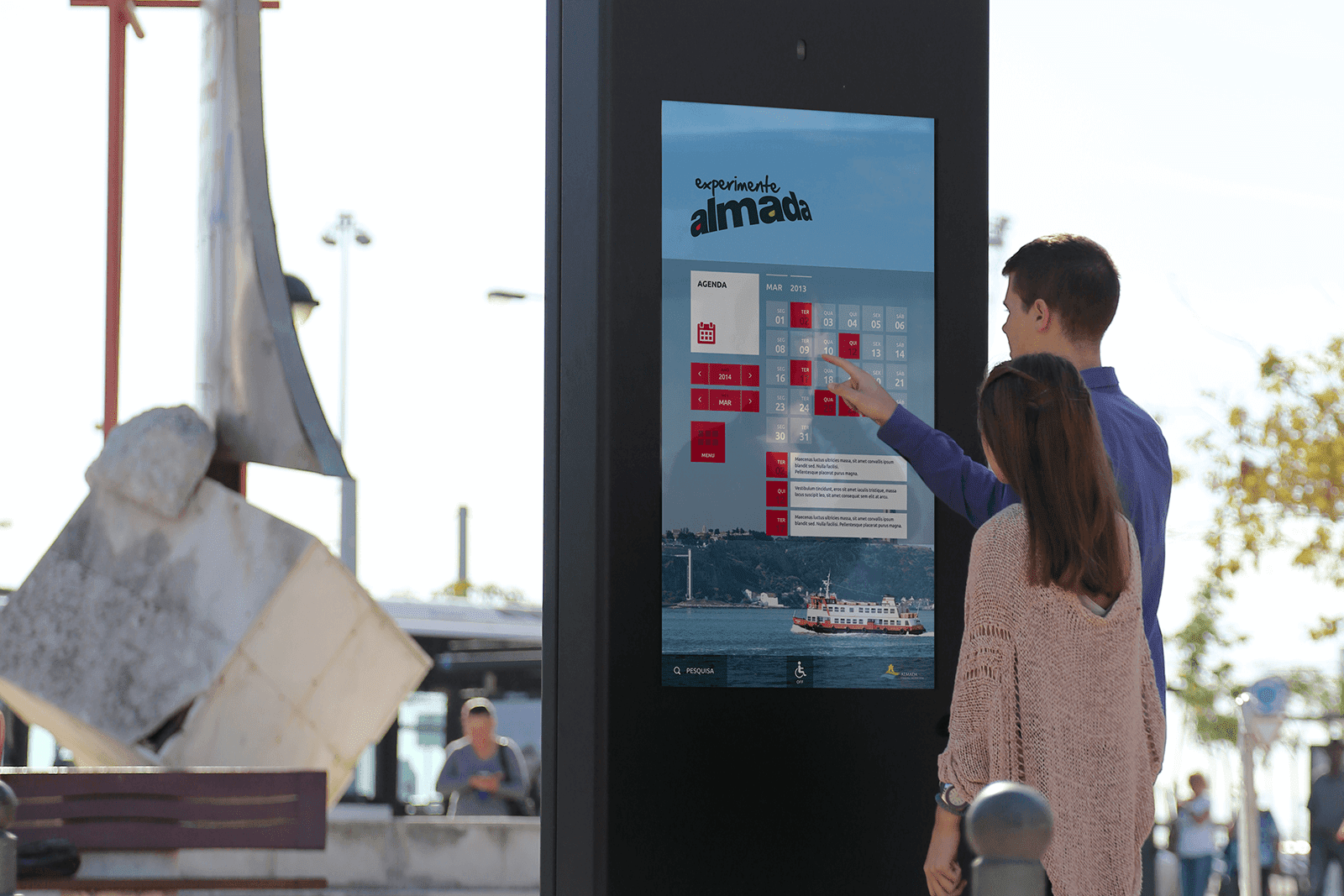

Ready for Indoor and Outdoor Touch Kiosks

The problems of the outdoor stands are extreme heat or cold, direct exposure to sun and UV, dust, rain and salt water, plus thousands of touches per day.

Therefore, the three main criteria in selecting the best products are: DURABILITY, FUNCTIONALITY and RELIABILITY.

For a simpler solution, SKIN DUALTOUCH is the touch sensor for you.

Ready for Indoor and Outdoor Touch Kiosks

The problems of the outdoor stands are extreme heat or cold, direct exposure to sun and UV, dust, rain and salt water, plus thousands of touches per day.

Therefore, the three main criteria in selecting the best products are: DURABILITY, FUNCTIONALITY and RELIABILITY.

For a simpler solution, SKIN DUALTOUCH is the touch sensor for you.

Fully Customizable Foil or Glass

DISPLAX multitouch sensors are wire-based sensor films designed to be used together with DISPLAX controllers and ready to be laminated in a non-conductive substract. They are UV and scratch resistant with the possibility of being fully customized:

Format

Variable width/height ratio

FPC tail position and length

Borders' width/height

Removable or permanent application

They can also be shipped already laminated with a glass of your choice and ready to be installed.

Fully Customizable Foil or Glass

DISPLAX multitouch sensors are wire-based sensor films designed to be used together with DISPLAX controllers and ready to be laminated in a non-conductive substract. They are UV and scratch resistant with the possibility of being fully customized:

Format

Variable width/height ratio

FPC tail position and length

Borders' width/height

Removable or permanent application

They can also be shipped already laminated with a glass of your choice and ready to be installed.

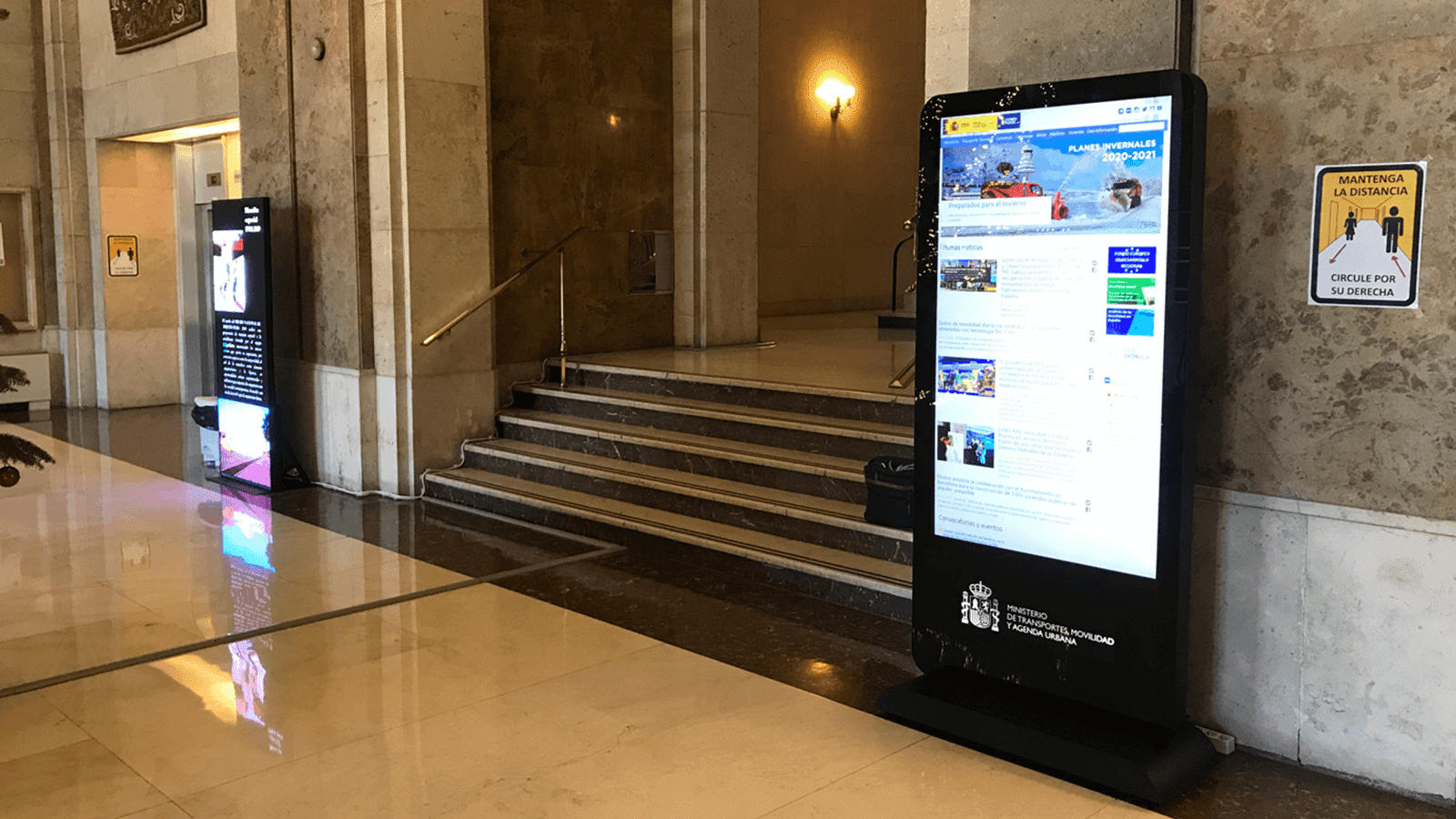

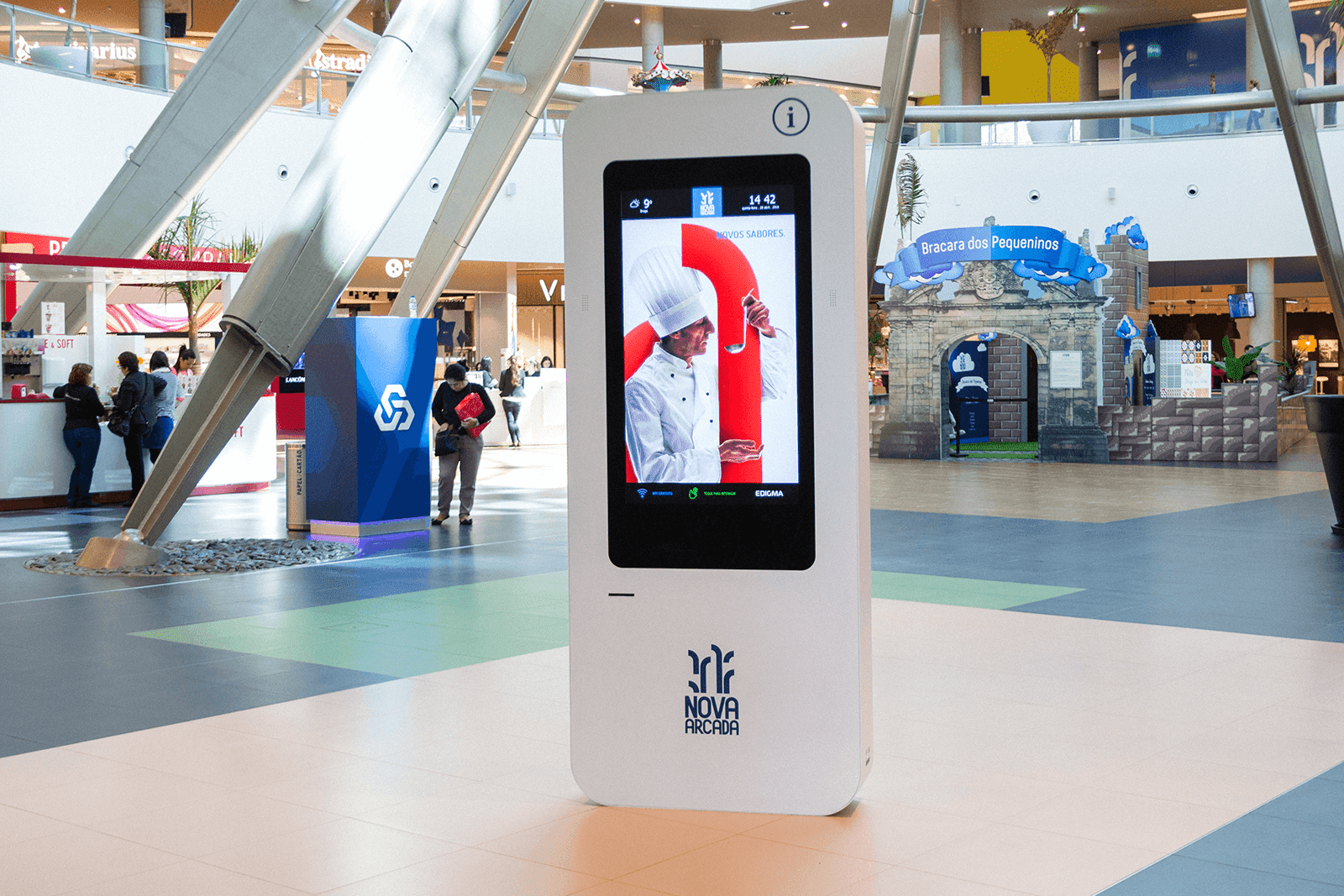

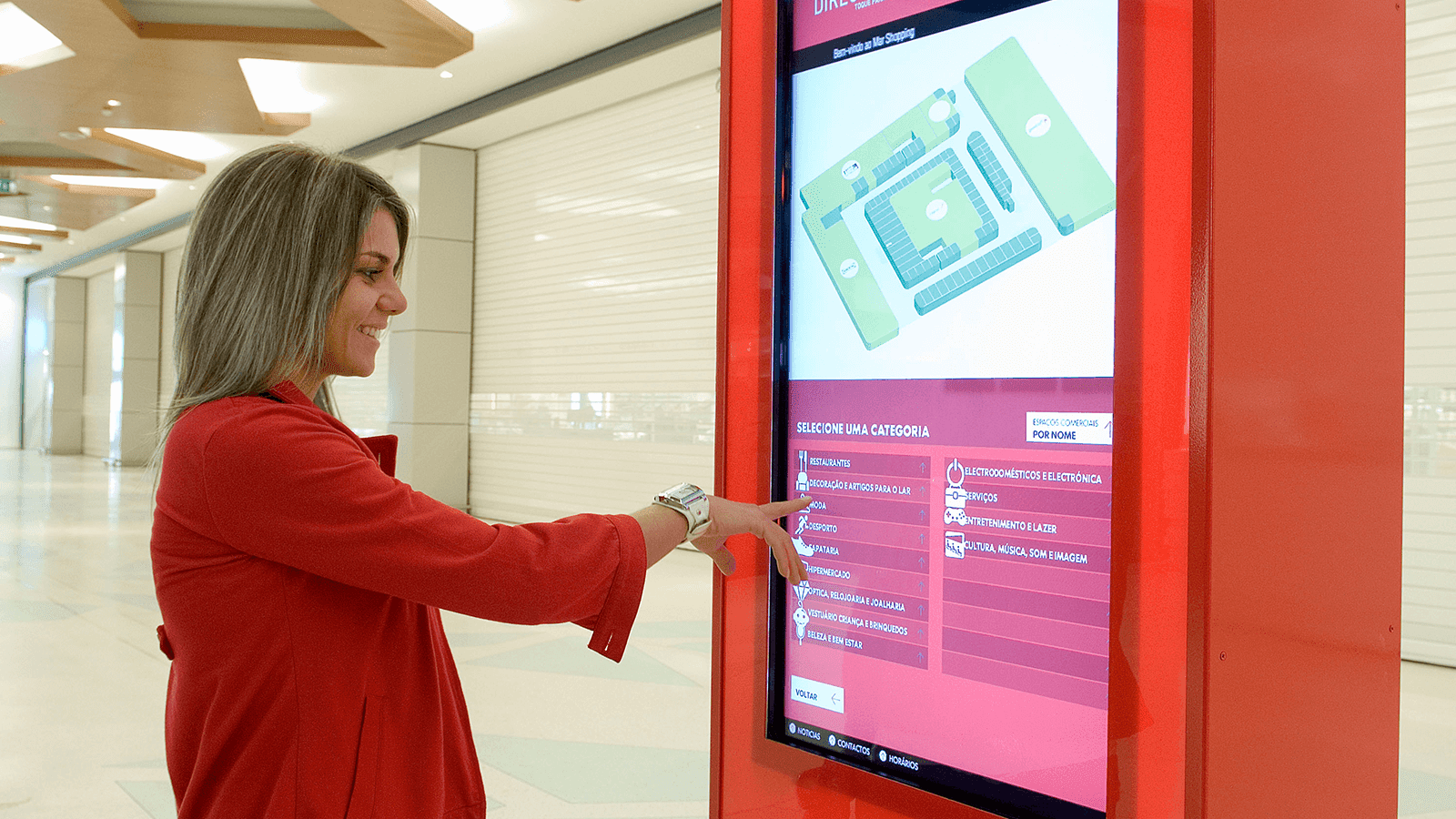

Use Cases

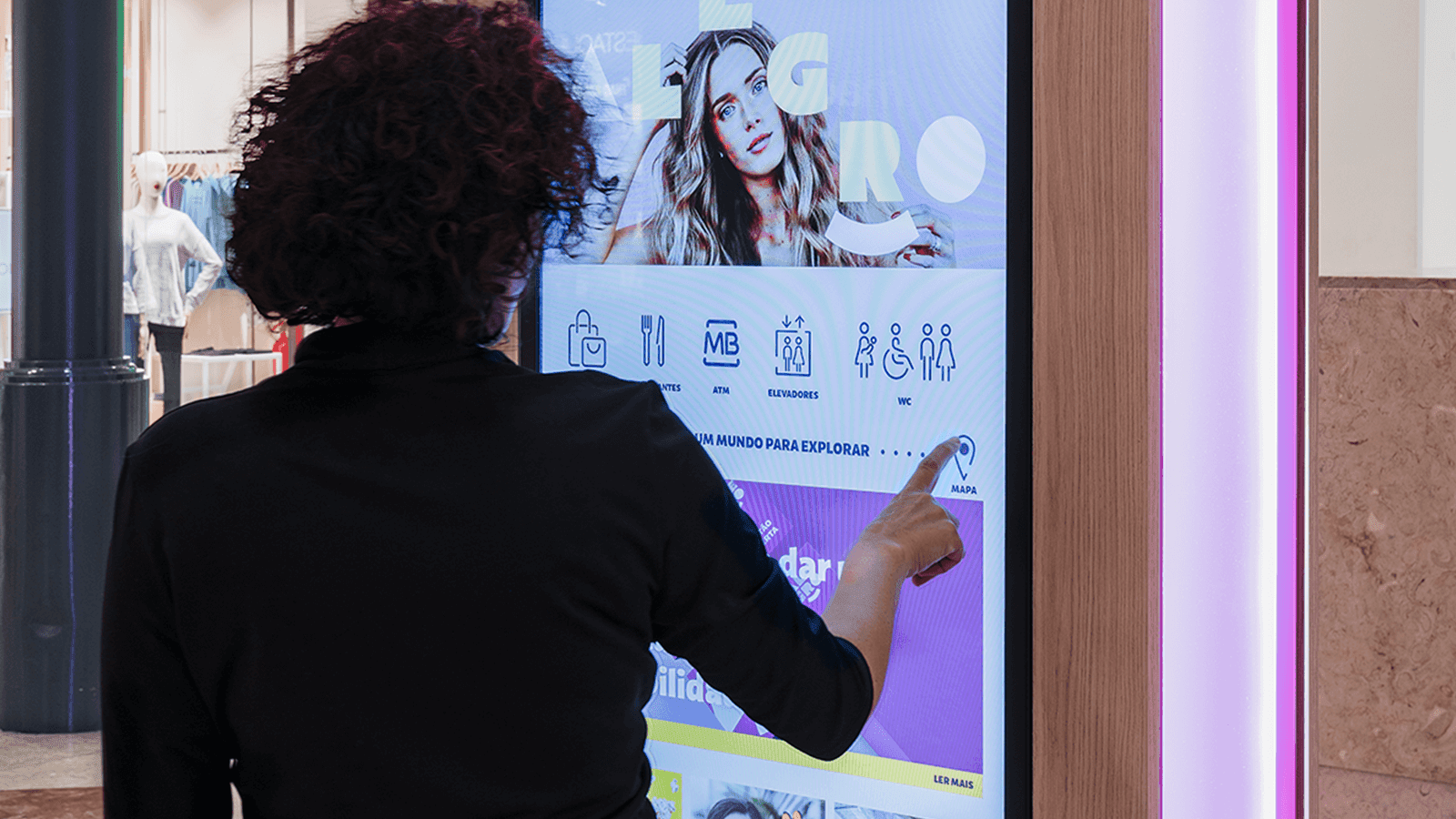

SKIN DUALTOUCH for indoor interactive kiosks

Use Cases

Typical Applications

Wayfinding Solutions

Vending

Interactive Digital Signage

Typical Applications

Wayfinding Solutions

Vending

Interactive Digital Signage

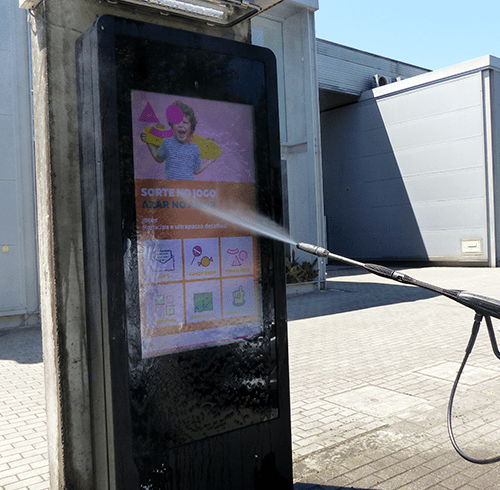

Weather Resistant

Ensure the optical integrity of your touchscreen and benefit from full transparency.

SKIN DUALTOUCH is resistant to rain, dust, ice and UV without affecting the touch technology.

Build a robust kiosk with the highest performance.

Weather Resistant

Ensure the optical integrity of your touchscreen and benefit from full transparency.

SKIN DUALTOUCH is resistant to rain, dust, ice and UV without affecting the touch technology.

Build a robust kiosk with the highest performance.

Want to speak to an expert?

Questions about pricing? Got an active project you’d like to discuss? If you want to learn more about SKIN DUALTOUCH, let’s connect.

Get in Touch with our Team

Want to speak to an expert?

Questions about pricing? Got an active project you’d like to discuss? If you want to learn more about SKIN DUALTOUCH, let’s connect.

Get in Touch with our Team

Combine Foil with Glass

Special Touchscreen Glass

We offer high quality glass produced for touchscreen use that has passed tight quality requirements compared to regular glass. Have it already laminated on any size, framing or color to make the unit ready for assembling.

Glass Thickness

SKIN DUALTOUCH can be laminated on glass up to 15mm thickness. Such a wide range of thickness fits the several requirements of different projects while benefiting from SKIN DUALTOUCH’s superb touch performance.

Combine Foil with Glass

Special Touchscreen Glass

We offer high quality glass produced for touchscreen use that has passed tight quality requirements compared to regular glass. Have it already laminated on any size, framing or color to make the unit ready for assembling.

Glass Thickness

SKIN DUALTOUCH can be laminated on glass up to 15mm thickness. Such a wide range of thickness fits the several requirements of different projects while benefiting from SKIN DUALTOUCH’s superb touch performance.

Ultimate Noise Filtering

XTR-Shield Plus

SKIN DUALTOUCH has all of the latest DISPLAX’s proprietary touch noise filtering technology, know as XTR-Shield Plus.

It filters the display noise that otherwise would affect the touch detection. Sensor can be placed closer than ever to the display, minimizing the parallax.

Ultimate Noise Filtering

XTR-Shield Plus

SKIN DUALTOUCH has all of the latest DISPLAX’s proprietary touch noise filtering technology, know as XTR-Shield Plus.

It filters the display noise that otherwise would affect the touch detection. Sensor can be placed closer than ever to the display, minimizing the parallax.

True HID Multitouch

Native single and multitouch support from OS

Windows

Chrome OS

Android

Raspberry Pi

Ubuntu

webOS

macOS

Tizen OS

True HID Multitouch

Native single and multitouch support from OS

Windows

Android

Ubuntu

macOS

Chrome OS

Raspberry Pi

webOS

Tizen OS

HID Mouse Emulation

Digital Signage Players

Windows Embedded

BrightSign

Smart Signage Platform

Spinetix

HID Mouse Emulation

Digital Signage Players

Windows Embedded

BrightSign

Smart Signage Platform

Spinetix

Specifications & Support

Technical Specifications

Download Spec File

Getting Started with SKIN

Learn More

Specifications & Support

Technical Specifications

Download Spec File

Getting Started with SKIN

Learn More

Certifications

At DISPLAX, we apply the best procedures to assure that our customers receive the best possible experience.

Conformité Européenne (CE)

Federal Communications Commission (FCC)

Restriction of Hazardous Substances (RoHS)

Certifications

At DISPLAX, we apply the best procedures to assure that our customers receive the best possible experience.

Conformité Européenne (CE)

Federal Communications Commission (FCC)

Restriction of Hazardous Substances (RoHS)

FAQs

Compatible Devices

All Displax products are HID (Human Interface Device) and don't require any drivers to work. As long as your device is HID compliant, it is compatible. Besides the Displax Skin MESH and Displax TILE, Skin products are not calibrated or fine-tuned from the factory. This is due to every different installation requiring a specific set of adjustments depending on the circumstances. For this we have the settings adjustment and tuning software: Displax Connect. Displax Connect does not function as a driver, and can in fact be uninstalled after concluding the fine-tuning of the unit. This software is compatible with the following operating systems:

Windows 7/8/10/11 (32-bit and 64-bit)
MacOS 10.14/10.15/11
Ubuntu 18.04/20.04 (32-bit and 64-bit)
Android 5.1 or higher (for Displax Connect version 2.3)

To use devices with operating systems that are not compatible with Displax Connect, you can perform the fine-tuning on a compatible machine/OS. All settings, including the calibration data, will be saved on the touch controller board, so you can then connect the touch controller to the device/OS of your choice and the settings will remain. The touch device will work regardless of the machine it is connected to.

Laminate Skin Ultra

In order to perform a good quality lamination, it's important to use high quality materials and tools. Below you can find a list of all tools and materials needed for the laminations process.

Tools and Materials

Good quality squeegee
Mix of water and Johnson's Baby Shampoo pH Neutral (5% Johnson's Baby Shampoo + 95% Water)
Spray Bottle
Alcohol

The video below shows the complete process of a Skin Ultra lamination onto a glass. You can also find complementary documention here.

AIR GAP

To securely fix the glass with the laminated DISPLAX Touch sensor to a monitor, a suitable double-sided bonding tape should be applied around the bezel of the monitor, for example 3M VHB tape, or similar.

This assembly procedure introduces an air gap between the monitor and the Touch sensor. The air gap reduces the effects of electromagnetic interference from the monitor, and the type of interference or "noise" varies between different monitors, depending on their characteristics.

The air gap can be between 1 and 10 mm thick, it must be of consistent width across the entire monitor, and should be kept as narrow as possible when interference is no longer visible in the touch signal. We recommend using an air gap of at least 2 mm.

In all cases, test before the final integration. Test different size air gaps by introducing a temporary object, like non-conductive, non-adhesive foam or cork spacers onto the monitor bezel, to incrementally adjust the distance between the monitor display and the Touch sensor laminated to the glass, until the point where all signs of noise have been eliminated.

FAQs

Compatible Devices

All Displax products are HID (Human Interface Device) and don't require any drivers to work. As long as your device is HID compliant, it is compatible. Besides the Displax Skin MESH and Displax TILE, Skin products are not calibrated or fine-tuned from the factory. This is due to every different installation requiring a specific set of adjustments depending on the circumstances. For this we have the settings adjustment and tuning software: Displax Connect. Displax Connect does not function as a driver, and can in fact be uninstalled after concluding the fine-tuning of the unit. This software is compatible with the following operating systems:

Windows 7/8/10/11 (32-bit and 64-bit)
MacOS 10.14/10.15/11
Ubuntu 18.04/20.04 (32-bit and 64-bit)
Android 5.1 or higher (for Displax Connect version 2.3)

To use devices with operating systems that are not compatible with Displax Connect, you can perform the fine-tuning on a compatible machine/OS. All settings, including the calibration data, will be saved on the touch controller board, so you can then connect the touch controller to the device/OS of your choice and the settings will remain. The touch device will work regardless of the machine it is connected to.

Laminate Skin Ultra

In order to perform a good quality lamination, it's important to use high quality materials and tools. Below you can find a list of all tools and materials needed for the laminations process.

Tools and Materials

Good quality squeegee
Mix of water and Johnson's Baby Shampoo pH Neutral (5% Johnson's Baby Shampoo + 95% Water)
Spray Bottle
Alcohol

The video below shows the complete process of a Skin Ultra lamination onto a glass. You can also find complementary documention here.

AIR GAP

To securely fix the glass with the laminated DISPLAX Touch sensor to a monitor, a suitable double-sided bonding tape should be applied around the bezel of the monitor, for example 3M VHB tape, or similar.

This assembly procedure introduces an air gap between the monitor and the Touch sensor. The air gap reduces the effects of electromagnetic interference from the monitor, and the type of interference or "noise" varies between different monitors, depending on their characteristics.

The air gap can be between 1 and 10 mm thick, it must be of consistent width across the entire monitor, and should be kept as narrow as possible when interference is no longer visible in the touch signal. We recommend using an air gap of at least 2 mm.

In all cases, test before the final integration. Test different size air gaps by introducing a temporary object, like non-conductive, non-adhesive foam or cork spacers onto the monitor bezel, to incrementally adjust the distance between the monitor display and the Touch sensor laminated to the glass, until the point where all signs of noise have been eliminated.
